Quick Details

  • Place of Origin: Fujian, China (Mainland)
  • Brand Name: QUANT
  • Model Number: P43
  • Wheel Material: Inflatable round
  • Body Material: Aluminum alloy
  • Color: Blue, red, silver
  • Tire Size: 12''
  • Size: L750 W600 H950 mm
  • Controler: PG
  • Motor: Import from Taiwan

Packaging & Delivery

Packaging Details Wooden box 745*695*890mm
Delivery Time 7 days after payment



Product Feathure

Flexible Middle Wheel Driving Power Wheelchair/ Electric Wheelchair for Handicapped:

Electric Power chair for Disability, PG Controller, Taiwan Motor



Middle wheels drive desgin, aluminium alloy fame, front and rear samping device for maximun stability, simple operation, Iportal dashboard application displays wheelchair. Information in real time using Bluetooth technology to conect with wheelchair system. can be detached into 3 parts for store.



*  Easy operation with PG controler, middle wheel driving can move to 360° sensitively.
*  Ergonomically designed headrest, soft and comfortable, effectively alleviate head pressure.
*  Armrest and seat angle can be adjusted freely for comfort.
*  Aluminium alloy fame, strong and safe, anodized surface, never rust.
* New design power wheelchairs with LED light system.
*  Outdoor use heavy duty electric power wheelchiars
*  Front foot pedal easy to detach and assemble.


The extemal dimension

(length×width×height)(mm)

850×640×1040 mm
Front wheel4"×2 PU solid tyre
Rear wheel12" × 4" × 2 Air Tyre
SeatDemountable
Speed0~8km
RangesAbout 35KM
DuarationAbout 5H
Groove Crossing Ability66mm
Driving systemGear driving
Braking systemElectric regenerative braking
Weight (excluding battery)53KG
Weight Capacity150KG
Ground clearance80 mm
Ground Clearance From Seat500mm-560mm
Min.Turning Radius500 mm
Max.Slope Grade Ability10 ±1 degree
ControllerPG-50AMP
Motor270W×2   (left/right montor) (Import From Taiwan)
ChargerDC24V/6A automatic charger    AC 110-250V
Batteries(lead-acid battery)12V 35AH*2PCS







Certifications

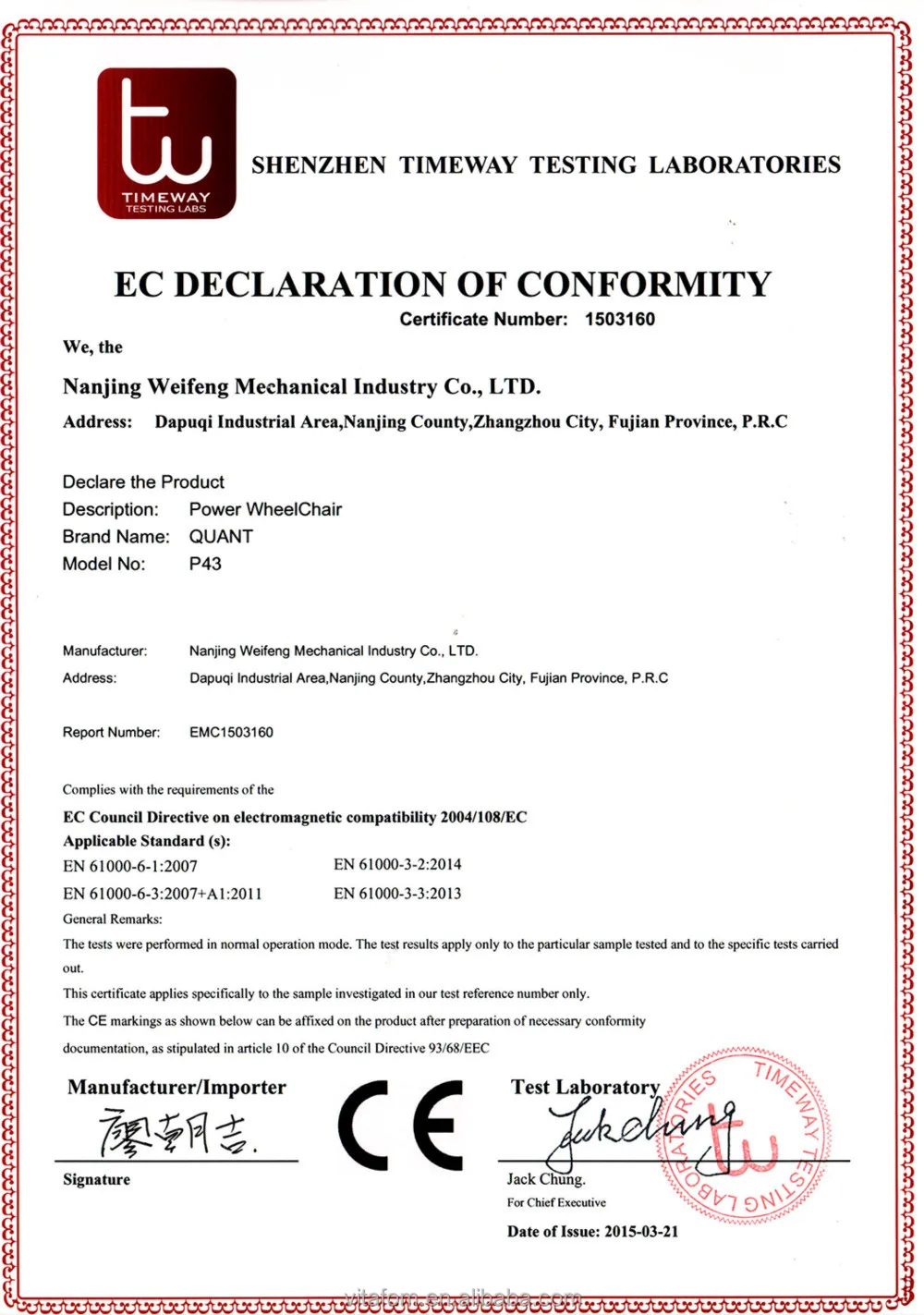

We got CE certifcation for all our products. And our company pass ISO9002 Audit.













Packaging & Shipping

 Our scooters are packed based on transportation tool and distance. We use most safe way of packing either by cartons or pallets which assure you receive our scooters with perfect condition. Nowadays, we have brown exporting carton, wooden carton and iron carton packing for different model of scooters.  Reasonable packing assure safe delivery of goods.



Scooters are shipped both by sea and by air. For quantity like 1 PC, we may delivery by air door to door. But, we recommand to delivery without battery since it's quite strictly limited to delivery by air with battery.



Payment Terms

1. T/T DEPOSIT 30% BEFORE PRODUCTION, REST ON RECEIPT OF COPIES OF SHIPPING DOCUMENT.

2. L/C is also acceptable.

3. For small amount, full payment before product is appreciated to save bank charge.

NOTE: We are member of ALIBABA TRADE ASSURANCE PROGRAM. ALIBABA will refund you if we don't delivery goods on time. You are shopping safely.





Warranty

TWO-YEARS LIMITED WARRANTY

*Main Frame

*Fork

*Seat Post

*Tiller Frame



ONE-YEAR LIMITED WARRANTY
For one (1) year from the date of purchase, Vitafom will repair or replace at our option to original purchaser, free of charge, any part or electronic component found upon examination by an authorized representative of Vitafom to be defective in material and/or workmanship,



*Bearings *Bushings *Rubber Components *Plastic Components except Body



Also, electronic assemblies including:

*Electronic Controller *Chargers *Harnesses * Motor Brake(electronic function ONLY) *Transaxle



ONE-YEAR WARRANTY EXCEPTIONS

TRANSAXLE: In cases where there is an increase in the operational noise level, the warranty does not apply,(The increase in operational noise level usually occurs due to abusive and excessive strain on the scooter,)
MOTOR BRAKE: one-year warranty for the electrical function of the motor brake, Brake pads are a wearitem and are not warranted.





SIX-MONTH WARRANTY



The battery is warranted by the battery manufacturer, The battery is not warranted by Vitafom.



WARRANTY EXCLUSIONS
*ABS plastic shrouds and footrest covers (wear items and not warranted)
*Batteries (the battery manufacturer provides a limited warranty)
*Tires and tire tubes (wear items and not warranted)
*Upholstery and seating (wear items and not warranted)
*Repairs and/or modifications made to any part of the scooter without specific and prior consent from Vitafom.
*Circumstances beyond the control of Vitafom
*Damage caused by: battery fluid spillage or leakage, abuse, misuse, accident, or negligence, improper
  operation, maintenance, or storage, commercial use or use other than normal
*Labor, service calls, shipping, and other charges incurred for repair of the product

*Repair and/or modifications made to any part without specific consent from Vitafom or authorized agent from Vitafom



Excludsions also include components with damage caused by:

*Contamination

*Abuse, misuse,accident, or negligence

*Battery fluid spillage or leakage

*Commercial use, or use other than nomal

*Improper operation, maintenance, or storage



Note: Gradual deterioration in performance because the battery has been left in a discharged state, left in cold conditions for an extended period of time, or worn out through heavy use is not covered.



SERVICE CHECKS AND WARRANTY SERVICE



Warranty service can be performed by Vitafom or by an authorized Vitafom Provider, Do not return faulty parts to Vitafom without prior consent, All transportation costs and shipping damage incurred while submitting parts for repair or replacement are the responsibility of the original purchaser.



THERE IS NO OTHER EXPRESS WARRANTY
Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to one (1) year from the date of original purchase and to the extent permitted by law. Any and all implied warranties are excluded, This is the exclusive remedy, Liabilities for consequential damages under any and all warranties are excluded,
Some states do not allow limitations on how long an implied warranty lasts or do not allow the exclusion of limitation of incidental or consequential damages, So, the above limitation or exclusion may not apply to you.





Look for Agent

We sincerely welcome companies which has experience in this industry to be our agent selling our scooters and power wheel chairs. On line shop and retail shop are all welcomed to be our sales agent.

We are here waiting for you for discussion.



OEM service

Since we are direct factory, we also provide OEM/ODM service. We can design and develop mode per your instruction.  We can produce with your brand.

Our designer and develop team are at your service.



Inquiry Tips

It's our pleasure to receive inquiry from everybody of you. And here are some tips for you when sending us the inquiry which may help us do efficent sevice.



1)When you need to get our catalog and price list, please send brief introduction of your company and provide your e-mail adress. Our catalog and pricelist are quite big size which may be not easy to transfer by Alibaba platform.



2) If you are interested in specific model, and request quotesheet, please advise quantity, Price term(FOB Xiamen, CIF...). We will send individule quote sheet with all specifiction of this model.



3) Sometimes, when we have stock for some models, we will remove MOQ limits and sell at one piece. When you need one piece, please advise if it's sample or for personal use. And also please provide detailed address if you need door-door delivery.  And for 1piece purchase, we advise air-freight without battery.  You can purchase Battery in your country. They work in our scooters and wheelchair.



Your feeback on your quotesheet will greatly help to improve and making progress. Much appreciate if feedback and be offered.



Wish you enjoy your shopping here. Any advise please do not hesitate to tell us.
